PBR Panel
PBR Panel Features
- Available in 36″ coverage with 1-1/4″ high ribs.
- Ideal for self-storage, commercial/ industrial wall applications, equipment screens, agricultural and residential construction.
- Reversed run profiles for wall applications make an attractive shadow panel.
- PBR-panel is available in a wide variety of colors and finishes.
- Matching Galvalume® pre-painted finishes are available for flashings and flat stock.
- Color match fasteners are self-sealing and available for wood and steel applications.
- Panel lengths up to 65 feet are available to minimize laps at no extra charge.
- Galvalume® and pre-painted material warranties are available up to 30 years.
- Color Chart
PBR-panels are excellent for roofing and siding panels, allowing for maximum spans in roof and wall application due to 12″ rib spacing.

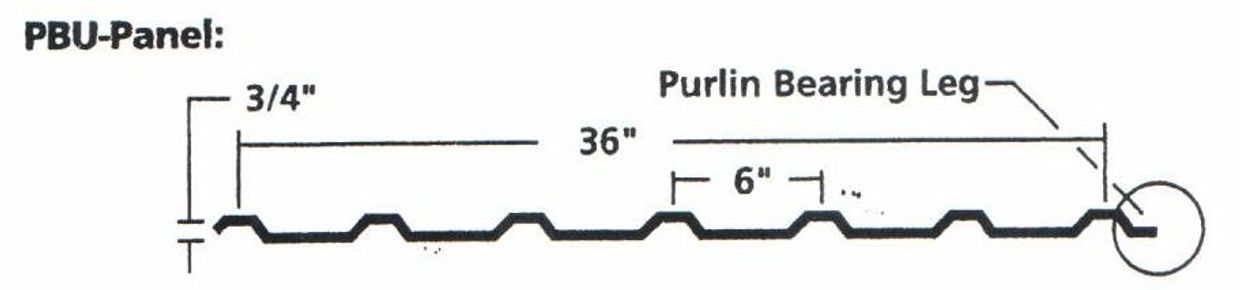

PBU Panel
PBU Panel Features
- Available in 36″ coverage with 3/4″ high ribs.
- Ideal for self-storage, commercial/industrial wall applications, equipment screens, agricultural and residential construction.
- Purlin bearing leg option for roofing application.
- U-panel is available in a wide variety of colors and finishes.
- Matching Galvalume® pre-painted finishes are available for flashings and flat stock.
- Color match fasteners are self-sealing and available for wood and steel applications.
- Panel lengths up to 65 feet are available to minimize laps at no extra charge.
- Galvalume® warranty 25 years and pre-painted material warranty 30 years.
- Color Chart
PBU-panels are excellent for light-duty roofing, siding and partition panels, allowing for fewer back laps and easier installation due to 6″ rib spacing.
5V Panel
5V Panel Features
- Available in 24″ coverage with 1/2″ ribs on 12 inch centers.
- Ideal for industrial/commercial, residential and agricultural applications.
- A full line of standard and custom trim items are available.
- Minimum roof slope 3:12.
- Galvalume® warranty 25 years.
- Panels are UL 2218 Class 4 Hail Impact Resistant and Texas Windstorm rated.
5V-panels combine a classic look with high-quality versatility that makes for great performance in nearly any style of roofing.
The panel double-overlap helps assure a water-tight seal. The panels should be installed over plywood and 30lb. felt.
**5V available in Galvalume® only.
Standing Seam Panel
Standing Seam Panel Features
- Available in 12″, 16″, and 18″ panel widths (24 Ga.)
- Available in three panel configurations: Striated, Ribbed, or Flat Pan.
**Striated panels are recommended as they reduce the appearance of oil canning.** - Snap-together panel design allows for fast, efficient installation without the need for job-site seaming.
- Concealed-fastener design enhances weather protection while maintaining a clean, durable standing seam system.
- Designed for both roofing and wall applications in residential and commercial construction.
- Minimum roof slope 3:12
- Can be installed over solid decking or open framing, providing flexibility for a variety of construction conditions.
- Available in Charcoal Gray, Matte Black, and White.
.
Soffit Panel
Soffit Panel Features
- Available in 12″ coverage with a 1″ rib height, manufactured from durable 24-gauge steel.
- Concealed-fastener design provides a clean, finished appearance with no exposed fasteners.
- Designed for installation over solid decking or open framing, providing flexibility for a variety of construction conditions.
- Unique interlocking design adds panel strength and helps resist disengagement under wind suction.
- Non-vented configuration.
- Available in White and Galvalume®.
.
Board & Batten Panel
Board & Batten Panel Features
- Wall panel design that replicates the classic look of traditional Board-and-Batten siding.
- Features wide, flat sections separated by raised vertical battens for a clean architectural appearance.
- Provides the appearance of traditional wood board & batten alongside the durability and low maintenance of metal.
- Ideal for residential, commercial, and architectural wall applications.
- Concealed fastener design provides a seamless appearance without exposed screws.
- Available in White.
.
Wave Panel
Wave Panel Features
- Available in 16″ coverage and manufactured from durable 24-gauge steel.
- Features 7/8″ high ribs spaced 4″ on center.
- Concealed-fastener wall panel with an integral fastening flange for a clean, streamlined appearance.
- Typically installed horizontally, but may also be installed vertically for added design flexibility.
- Ideal for commercial, residential, self-storage, and architectural wall applications.
- Available in Galvalume®, Matte Black, and Dark Bronze.
.
